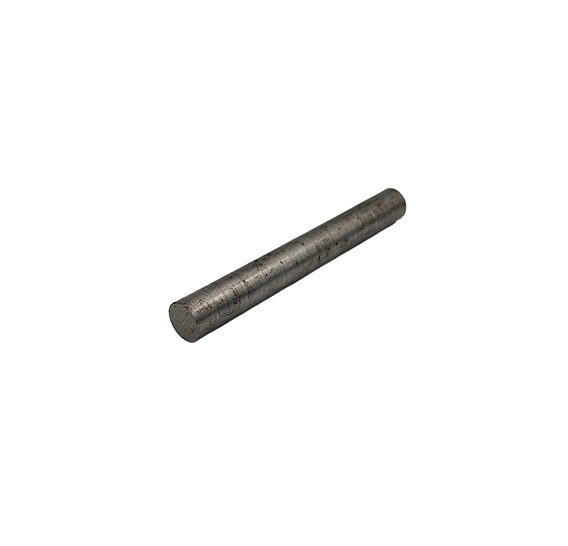

Shear Pins

The Yeomans Shear Pin is a simple, sacrificial safety component designed to protect Yeomans shanks and plow frames when encountering immovable obstructions such as large stumps or rocks.

Unlike many of our competitor’s shear pins which are machined, the Yeomans Shear Pin is inexpensive to purchase and simple to change in the field.

When a large obstruction is struck, the shear pin breaks, allowing the shank to swing back rather than transferring damaging loads into the plow frame. Replacement is quick and straightforward, allowing work to resume within minutes.
Categories: , ,


SHEAR PIN RANGE

  • 12mm for 22″ shank
  • 18mm for 26″, 31″ and Big Y shanks



FEATURES

  • Made from cold drawn steel which offers better yield strength and less stretch (bending) before failure
  • Designed to fail cheaply and predictably, reducing repair costs and downtime.
  • A broken shear pin can be replaced in seconds in the paddock, with no special tools required.
  • Drift Tool supplied with each plow

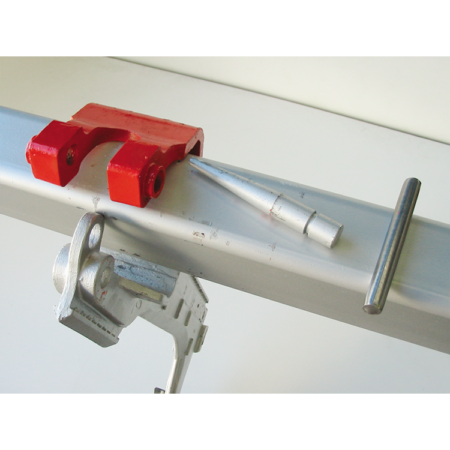

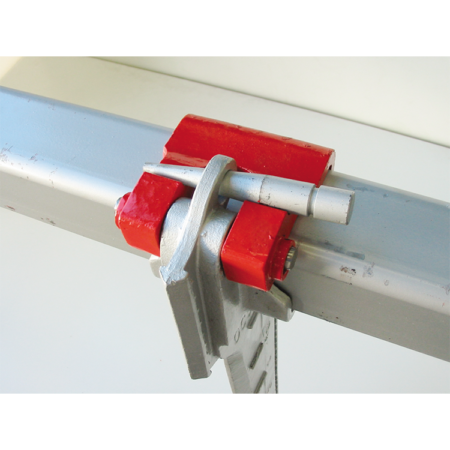

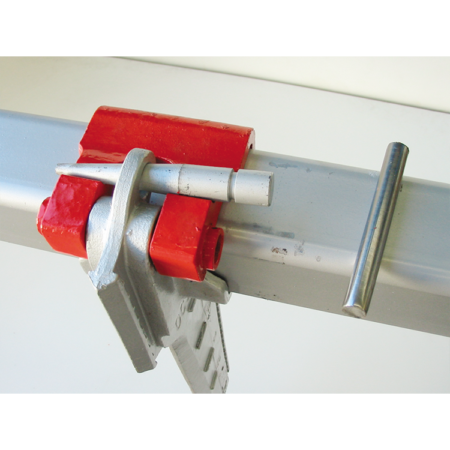

  • 1. To replace the shear pin, simply pull the shank back in place.
